diy remote control Smart robot for adults electric car kit Tank Crawler Chassis wheel Metal-containing Motor with Encoder

$195.81

Style: Battery Operated Toy, DIY TOY, Educational Toy, Electronic Toy, MODEL TOY
Function: Remote control movement &Secondary programming
Place of Origin: China
Brand Name: miniBalance
Model Number: MG513MG540
Description: Remote Control Operation
Type: Smart Control Robot
Feature: Secondary programming
Color: Silver
Keywords: Mobile Robot
Material: Aluminum alloy

3 in stock

Description

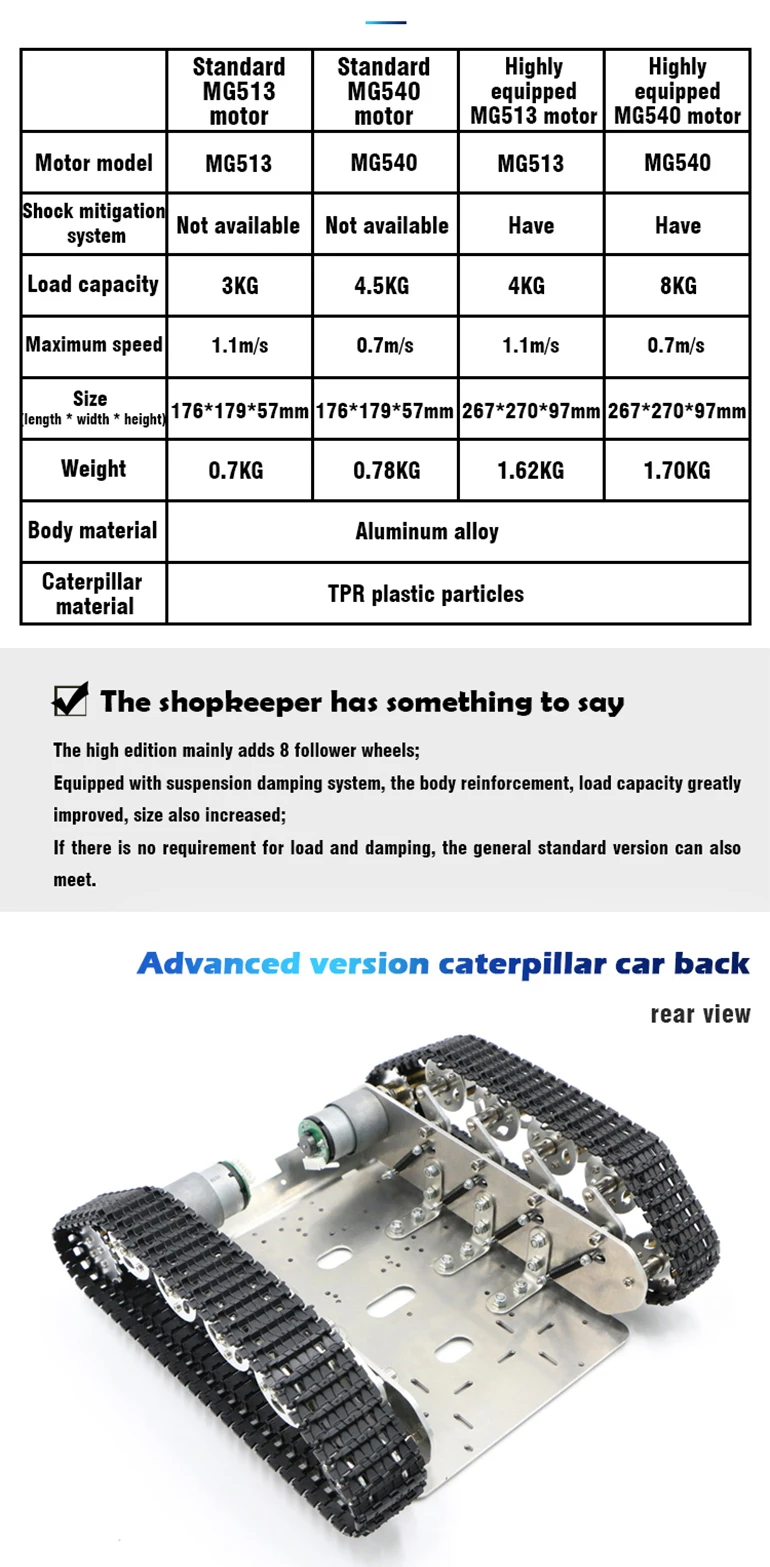

Products Description

Standard MG513 motor

Standard MG540 motor

Highly equipped MG513 motor

Highly equipped MG540 motor

Motor model

MG513

MG540

MG513

MG540

Shock mitigation System

Not available

Not available

Have

Have

Load capacity

3KG

4.5KG

4KG

8KG

Maximum speed

1.1m/s

0.7m/s

1.1m/s

0.7m/s

Size

176*179*57mm

176*179*57mm

267*270*97mm

267*270*97mm

Weight

0.7KG

0.78KG

1.62KG

1.7KG

Body material

Aluminum alloy

Caterpillar material

TPR plastic particles

Caterpillar Chassis

The chassis shape of this crawler car is exquisite and beautiful.The chassis support and wheel system are made of metal ,which is firm and stable . the two deceleration motors with encoder provide power,and it has the characteristics of forward and backward ,Left and right turns,turning in circles and turning flexibly

The store has something to say
The high-end version mainly adds 8 driven wheels Equipped with suspension shock absorption system, the body reinforcement is increased, the load capacity is greatly improved, and the size is also increased If there is no requirement for load and shock absorption, the general standard version can also be satisfied.

Details Images

MG513 motor&encoder parameters

Below parameters are measured V 12 test environments

Working voltage

7-13V
(Custom wide voltage input motor)

Rating torque
Rating torque
Power rating
7W
Original speed
15000rpm
Motor type
Permanent magnet brush
Unloaded speed
500rpm
Locked-rotor current
5.4A
reduction gear ratlo
1:30
Locked-rotor torque
15kgf.cm
output axis
Dlameter 6mm,D Axis eccentric shaff
Rated current
154mA
Encoder parameter

Type

AB phase increment hall(magnetic) encoder

Line number

390(Measured with reducer output shaft)

Service voltage

5.0V

Features

It’s own pull up plastic ,SCM can be directli read

MG540 motor&encoder parameters

Working voltage
12V
Rating torque
2.6kgf.cm
Power rating
15W
Original speed
10000rpm
Motor type
Permanent magnet brush
Unloaded speed
330rpm
Locked-rotor current
>8A
reduction gear ratlo
1:30
Locked-rotor torque
26kgf.cm
output axis
Dlameter 6mm,D Axis eccentric shaff
Rated current
1.44mA
Encoder parameter

Type
AB phase increment hall(magnetic) encoder
Features
It’s own pull up plastic ,SCM can be directli read
Service voltage
5.0V
Interface type
XH2.54(Standard connector)
Accessories
Provide the right to use original material

After purchase provide the following original information download Link .
Enjoy the product information free of charge for life update privilege
Here are STM32 Versions of the information

New Launch motor PID video tutorial

Theoretical analysis .C language implementation

control schematic●complete code●video explanation

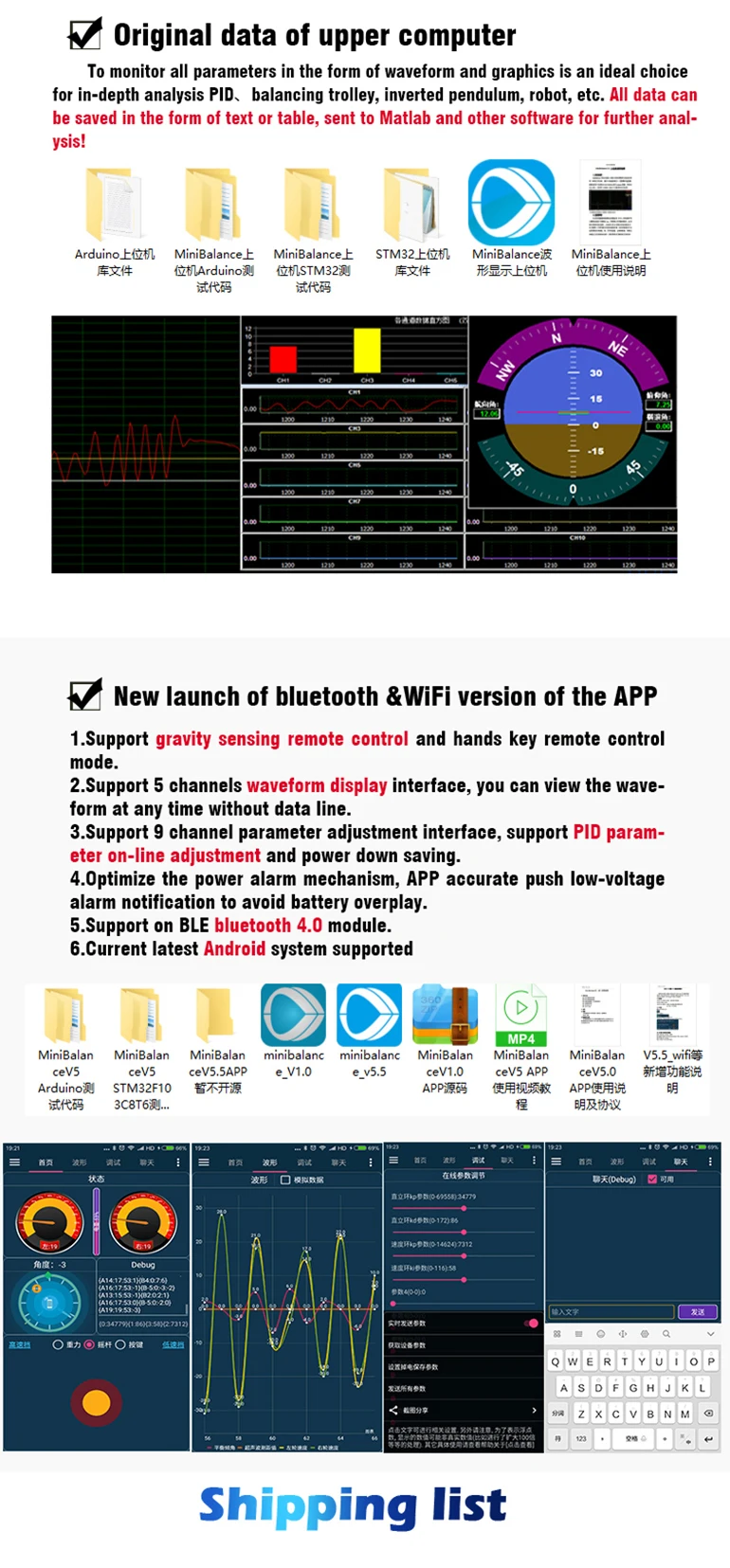

Original data of upper computer

To monitor all parameters in the form of waveform and graphics is an ideal choice for in-depth analysis PID、balancing trolley, inverted pendulum, robot, etc. All data can be saved in the form of text or table, sent to Matlab and other software for further analysis!

New launch of bluetooth &WiFi version of the APP
1.Support gravity sensing remote control and hands key remote control mode. 2.Support 5 channels waveform display interface, you can view the waveform at any time without data line. 3.Support 9 channel parameter adjustment interface, support PID parameter on-line adjustment and power down saving. 4.0ptimize the power alarm mechanism, APP accurate push low-voltage alarm notification to avoid battery overplay. 5.Support on BLE bluetooth 4.0 module. 6.Current latest Android system supported

Product packaging

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging serviceswill be provided.

Company Profile

Chengdu bingzhong technology co.ltd.Is aninnovation technology company focusing on the production 、research and development of high-tach toys.Teaching equipment and electronic products .”Simpler experience technology” is our product concept,such as :mendoncino motor series,magnetic levitation platform series, and various types of brushless motor.

Certifications

Why Choose Us

long history

witrh over 8 years expierence in disply area.Our products are widely used for medical equipments,industirial device tools,vodeo player ,banking machine and so on

good quality

Our factory had first-class automatic product line and the specilized R&D team .Each of our products is checked bu QA carefully

Advantages of us

We have a good management team ,Excellent marketing staff and professional technical force to support you in 24 hours

FAQ

Additional information

Brand Name

miniBalance

Function

Remote control movement &Secondary programming

Type

Smart Control Robot

Place of Origin

China

Description

Remote Control Operation

Keywords

Mobile Robot

Color

Silver

Style

Battery Operated Toy- DIY TOY- Educational Toy- Electronic Toy- MODEL TOY

Material

Aluminum alloy

Model Number

MG513\MG540

Feature

Secondary programming
